I. Industry situation

With the acceleration of the urbanization process across the country, high-rise buildings are springing up, and spacious and tidy streets are extending out one by one.Underground drainage pipes have been neglected for a long time. With the continuous expansion of urban scale and the continuous growth of streets, underground drainage pipes and river drainage are still primitive. A rainstorm can lead to poor urban drainage and serious water flooding.

As a smart Internet terminal solution provider integrating r&d and intelligent manufacturing in the Yangtze River Delta region, Mantu technology actively builds a set of "urban drainage monitoring and early warning system".The system can real-time online monitoring urban sewage water, culverts, water level, water level, river water level, etc., when these sites were immediately inform management platform, through the phone APP, mobile phone text messages, such as the sound and light alarm inform city managers, the broad masses of social danger, and for decision makers to develop a solution to the danger, achieve the goal of early warning, and mitigation.

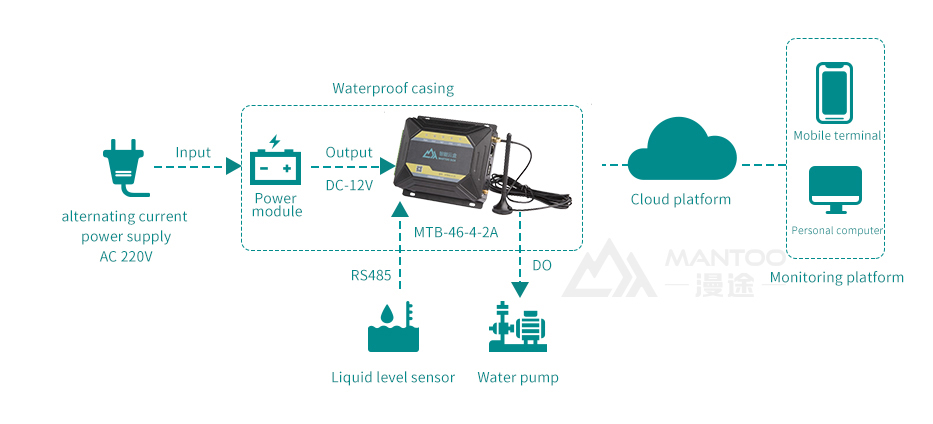

II. system architecture

III. Program features

High real-time performance: Real-time collection and transmission of data at all monitoring points to THE MTIC 3.0 cloud platform for data analysis and dynamic display through big data Kanban.

High security, high reliability: the system can effectively prevent and prevent network attacks such as illegal access, illegal access, virus infection and hacker attack, with a high degree of security and confidentiality;The system adopts mature, stable and general technology and equipment, which can guarantee the long-term stable operation of the system, and has strong fault tolerance and system recovery capability.

Linkage of water pump: support linkage of water pump and drainage pump, automatically realize the start and stop of drainage pump according to the change of water level at the monitoring point.

Early warning and intelligent analysis: The real-time collected data can be compared with the set threshold value, and the MTIC 3.0 cloud platform can give early warning, leaving sufficient time for relevant disposal personnel to eliminate security risks.

Automatic multi-stage warning: automatic alarm in case of water level/rainfall exceeding limit, equipment failure and abnormal power supply, uploading to monitoring center;Three-level warning for measuring points of water accumulation, pay attention to safety, communicate with caution and prohibit passage;Alarm thresholds such as water level/rainfall support custom Settings.

IV. picture from the scene

Field deployment diagram

Monitoring of rainwater well water level

V.Introduction to Intelligent Terminal

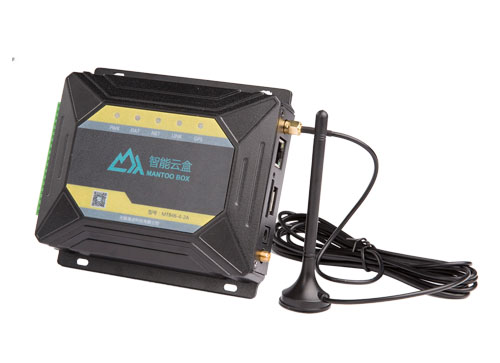

MTB46-4-2ASeries wireless remote measurement and control terminal is integrated with analog signal acquisition, switch input, output, independent decision-making and wireless data communication in the integration of high performance measurement and control device, can direct access to all kinds of sensors, the standard signal transmitter, the instrument analog signal, signal output, dry contact, and so on, USES the high performance industrial processors and industrial-grade wireless module, to provide 1 RS485 interface, 2 road analog (0 ~ 10 v) input, 2 way switch quantity input, two-way relay output.It can realize data acquisition and remote control, support local autonomous decision and logical configuration, support protocol customization, and match multiple application scenarios.Support 4G wireless and Ethernet communication capabilities.

smart terminal

product feature

※ Industrial grade application design

①Adopt high-performance industrial-grade wireless module

②Adopt high performance industrial grade communication processor

③Built-in Real-time Clock (RTC)

※stable and reliable

① WDT watchdog design, system stability

②Adopt complete anti - drop mechanism, the data terminal is always online

③15KV ESD protection is built into the RS485 interface

④15KV ESD protection is built into SIM/UIM card interface

⑤Power interface built-in anti-phase protection

※ The standard is easy to use

①Q(mào)uad-frequency module is universal all over the world. It supports 4G networks of China Unicom, China Mobile and China Telecom. Ordinary mobile phone CARDS can be used

②Supports any format setting for registering package/heartbeat data

③Provide standard RS485, USB, LAN interface, can be directly connected to serial port devices
